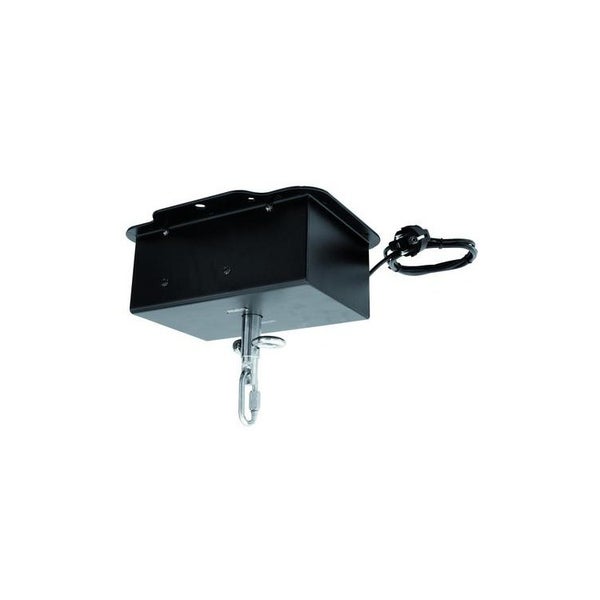

Eurolite MD-3030
Produktnr.: 9000-0004-6197 Bax Music Garanti: Denna produkt levereras med 2 års garanti.

Allmänt

With Eurolite's professional mirror ball motor you can control your mirror balls via DMX. The MD-3030 DMX mirror ball motor can control mirror balls with a maximum weight of 40 kg. This motor is fit for professional applications, in discotheques, for instance. With the Eurolite MD-3030 DMX you can control the rotation direction, the rotation speed and master/slave. It can be easily connected to a safety plug via a power cable.

Tips eller kommentarer om den här produkten

- Please note: when you are using the Eurolite MD-3030 DMX mirror ball motor for the very first time, the installation must have been approved by a professional.
- For safety purposes, always install the motor with a second fastening agent.
- Has to meet EN DIN 15560 norms
- The 2 chains and 4 couplers can be ordered separately

Specifikationer

Vikt och mått inkluderar förpackning

Vikt (inkl. förpackning)	6,0 kg
Mått (inkl. förpackning)	2,9 x 2,4 x 1,9 cm

Produktspecifikationer

- professional mirror ball motor
- fit for a maximum load of 40 kg (including chains and fixation material)
- fit for (EUROLITE) mirror balls with a diameter of 100 cm
- works in stand alone modus or via DMX interface
- can be controlled with DMX512 via a commercial DMX controller (takes up 1 channel)
- functions: rotation direction, rotation speed, master/slave
- can be programmed via DIP switches
- can be connected directly via a power cable with safety plug
- power: 230 V AC, 50 Hz
- power consumption: 16 W
- rotation speed: up to 1 RPM
- dimensions: 285 (L) x 235 (W) x 190 mm (H)
- weight: 6 kg
- maximum capacity WLL (4-way): 120 kg
- maximum capacity BGV C1 (8-way): 60 kg
- maximum capacity BGV C1 (10-way): 50 kg
- maximum capacity BGV C1 (12-way): 40 kg
