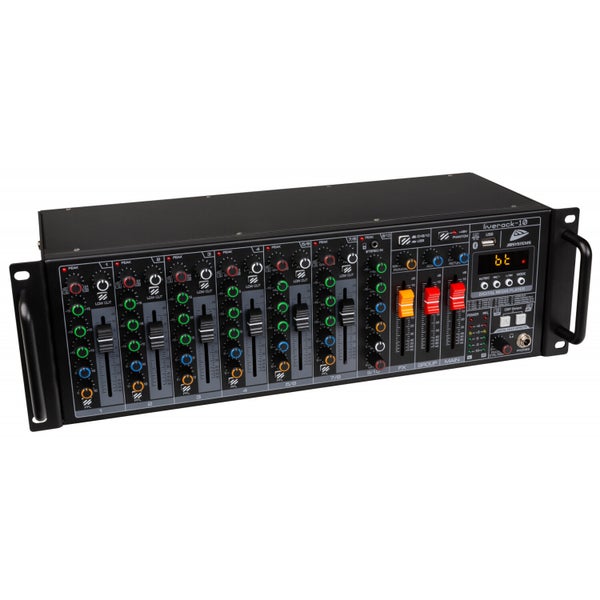

JB systems LIVERACK-10 19-inch Rack Mixer with Media Player

JB systems LIVERACK-10 19-inch Rack Mixer with Media Player
Produktnr.: 9000-0103-5251

Produktinformation

Allmänt

The JB systems LIVERACK-10 is the 19" rack-mountable edition of the LIVE-10 mixer, which means it can be easily installed along with your other rack gear to save space. Equipped with ten inputs divided across seven channels, the LIVERACK-10 is a solid solution for small-scale gigs. Playback audio via Blueooth or USB and activate the built-in effects to guarantee a dynamic performance.

Multifunctional PA Mixer

The four microphone inputs feature +48V phantom power supply and can be used to connect sensitive condenser microphones for vocals and instruments. Not only that, each mono channel comes with its own -20dB PAD switch for damping loud instruments, and the integrated media player doubles as a mono MP3 recorder so you can make live-recordings of the mix and store any recordings directly on a plugged in USB stick.

Specifikationer

Produktfunktioner

Antal AUX: 1 - 2
Antal linekanaler: 8
Antal mikrofonkanaler: 6
Antal submasters: 2
Kompressor vid ingångarna: Nej
Crossfader: Nej
Ducking: Nej
Sustainable product: Not specified
Equalizer: 3-bands
Stöder faderstart: Nej
Hörlursutgång: Ja
Kontakt ingång: Jack (6,3 mm), XLR
Inbyggd ljudspelare: USB, Bluetooth
Inbyggda effekter: Ja
Nivåmätare på ingångarna: Peak LED
Nivåmätare vid utgångar: VU-mätare LED
Rackhöjd: 3 U
Utgångsanslutning: Jack (6,3 mm), XLR (3-pins)
Volymreglering: Rattar, fadrar, fadrar + rattar

Vikt och mått inkluderar förpackning

Vikt: 4,8 kg
Mått: 100,0 x 78,0 x 60,5 cm

Produktspecifikationer

19" PA mixer
5V USB powered
10 inputs divided over 7 channels:
- 4 mic/line
- 2 mono/stereo line
- 1 mono/stereo line /USB/player
USB port: bidirectional (for mono recording or stereo display via PC/Mac)
internal WMA, WAV, FLAC, APE and MP3 media player for USB memory sticks
the media player can also be used as a mono m3 recorder (128kbps)
integrated Bluetooth receiver
internal 32-bit DSP effect unit with 99 effect variations
controls per channel:
- Gain (except for media player inputs 9/10)
- Pan
- Low Cut switch (except for media player inputs 9/10)
- Treble, mid, bass (treble/bass only for media player inputs 9/10)
- Aux send (Post Fader)
- Effect send
- channel level
- PFL (except for media player inputs 9/10)
1 Master + 1 Group output with individual level control
headphone and control room output with level controls
Aux Send output + Return input with individual level control
dimensions: 48 x 20 x 15cm
weight: 4.14 kg

Servicelöfte

Bax Music Garanti Denna produkt levereras med 2 års garanti.

Denna produkt levereras med 2 års garanti.
