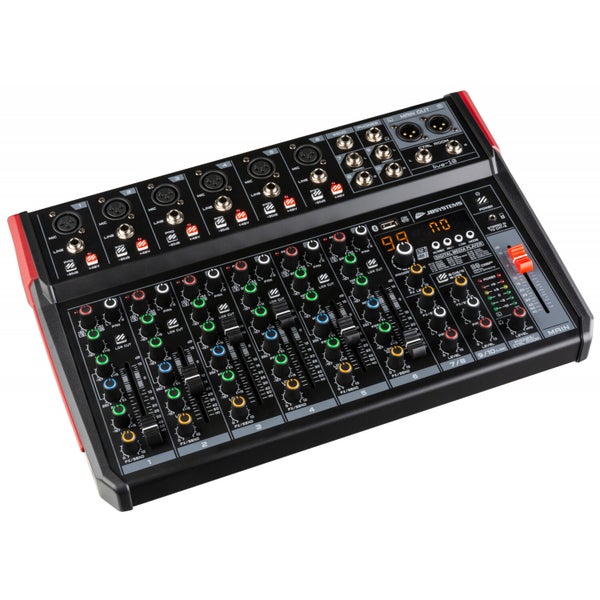

JB systems LIVE-10 8-Channel Mixer with Media Player

Utgången, den här produkten kan inte längre beställas.

Inga alternativ hittades

Produktinformation
Recensioner (2)
Nedladdningar (1)

JB systems LIVE-10 8-Channel Mixer with Media Player
Produktnr.: 9000-0103-5227 Bax Music Garanti: Denna produkt levereras med 2 års garanti.

Allmänt

A solid solution for smaller live venues and pubs, the JB systems LIVE-10 mixer can take six microphones and up to eight line-level sources, comes with built-in effects and can playback audio via USB or Bluetooth to complete a seamless and versatile, dynamic show. Each XLR microphone port has been furnished with a +48 Volt phantom power switch to accommodate condenser microphones as well as passive dynamic microphones and instruments, and each mono channel has a -20dB PAD switch for reining in louder instruments. The integrated media player also doubles as an mp3 recorder, so you can capture the mix on a USB stick, or you could simply hook the LIVE-10 up to a laptop or desktop computer via USB to record the live show or playback media.

Specifikationer

Produktfunktioner

19 tum	nej
Antal AUX	1 - 2
Antal mikrofoningångar	5 - 8
Antal monokanaler	6
Antal stereokanaler	2
Antal submasters	ingen
Sustainable product	not specified
48V Fantommatning	ja
Hörlursutgång	ja
Inbyggt audio interface	USB (2x0 I/O)
Inbyggd ljudspelare	USB, Bluetooth
Inbyggda effekter	ja
Built-in mixer effects	reverb/delay/modulation
Insticksanslutningar	nej
Type of mixer inputs	microphone input (XLR), unbalanced line input (TS jack)
Type of mixer	studio / PA mixer
Type of mixer outputs	balanced line output (XLR), unbalanced line output (TS jack)
Volymreglering	rattar, fadrar, fadrar + rattar

Vikt och mått inkluderar förpackning

Vikt (inkl. förpackning)	3,4 kg
Mått (inkl. förpackning)	46,3 x 30,2 x 10,0 cm

Produktspecifikationer

versatile PA mixer in a compact format
5V USB powered
combine it with a power back and battery-powered speakers for a 100% portable system
10 inputs divided over 8 stereo groups:
- 6 mic/line,
- 1 mono/stereo line,
- 1 mono/stereo line /USB/player
USB port: bidirectional (for mono recording or stereo display via PC/Mac)
internal WMA, WAV, FLAC, APE and MP3 media player for USB memory sticks
the media player can also be used as a mono m3 recorder (128kbps)
integrated Bluetooth receiver
internal 32-bit DSP effect unit with 99 effect variations
input controls on all mono channels:
- individual 48V phantom power switch on every mono channels
- -20dB pad switch
- gain
- pan
- low-cut filter switch
- treble, semi-parametric mids, bass
- effect sends
- channel level control
balanced master output
headphone and control room output with level controls
dimensions: 41 x 28 x 6cm
weight: 3 kg

En recension kan inte längre skrivas om denna artikel

Recensioner från andra länder

Översätt alla recensioner till svenska Visa den ursprungliga recensionen

Henk Stevens 12 december 2024

Skrev följande om JB systems LIVE-10 8-Channel Mixer with Media Player

Prima mixer. Klein, compact en doet wat het moet doen waar ik hem voor gekocht heb. Goede EQ en de USB is ook een uitkomst. Prima service van Bax.

John T. 15 oktober 2024

Skrev följande om JB systems LIVE-10 8-Channel Mixer with Media Player

Received this great little mixer a couple of weeks ago and very happy with it. Pretty basic but easy to use, nice EQ spread and great choice of onboard FX. It also looks great, is super portable and a really good price 👌🏼.
