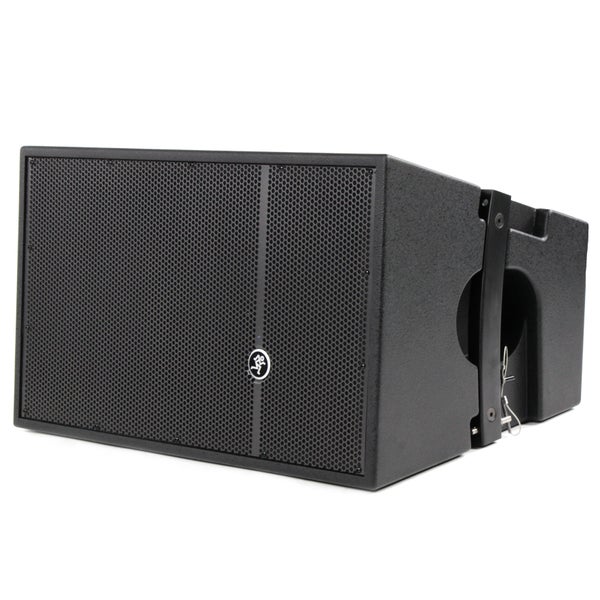

Mackie HDA 12 tums 2-vägs line array aktiv högtalare

5 / 5

Mackie HDA 12 tums 2-vägs line array aktiv högtalare

Utgången

Den här produkten kan inte längre beställas

Specifikationer

Vikt och mått inkluderar förpackning

Vikt: 35,5 kg
Mått: 70,0 x 54,0 x 51,0 cm

Produktspecifikationer

110 x 20-degree constant directivity
scalable and arrayable with a multitude of configuration options
maximum flown system supports up to 4x HDA and 2x HD1801 subwoofers
ground stack up to 3 HDAs on a HD1801 subwoofer or flybar
pole mount up to 2 HDAs on a HD1801 subwoofer or stand using dual-angle pole cups
1,200W ultra-efficient class-D Fast Recovery ™ amplification
power LF: 500 W RMS/1,000 W peak
power HF: 100 W RMS/200 W peak
12-inch neodymium woofer with 3-inch voice coil
dual Beyma 1.7-inch compression drivers with heat-treated titanium diaphragms
high-definition audio processing includes:
revolutionary patented acoustic correction
transducer time alignment and phase correction
precision 2-way crossover
three-position voicing switch for easy array voicing
integrated limiter and protection circuit
4x M10 fly points
integrated flyware for an easy array setup
ultra-compact and lightweight
robust wooden housing (15mm birch plywood)
supported by EAB Resolution prediction software
dimensions: 628 x 405 x 373 mm (WxDxH)
weight: 26.7 kg

Inga alternativ hittades

Specifikationer

Vikt och mått inkluderar förpackning

Vikt: 35,5 kg
Mått: 70,0 x 54,0 x 51,0 cm

Produktspecifikationer

110 x 20-degree constant directivity
scalable and arrayable with a multitude of configuration options
maximum flown system supports up to 4x HDA and 2x HD1801 subwoofers
ground stack up to 3 HDAs on a HD1801 subwoofer or flybar
pole mount up to 2 HDAs on a HD1801 subwoofer or stand using dual-angle pole cups
1,200W ultra-efficient class-D Fast Recovery ™ amplification
power LF: 500 W RMS/1,000 W peak
power HF: 100 W RMS/200 W peak
12-inch neodymium woofer with 3-inch voice coil
dual Beyma 1.7-inch compression drivers with heat-treated titanium diaphragms
high-definition audio processing includes:
revolutionary patented acoustic correction
transducer time alignment and phase correction
precision 2-way crossover
three-position voicing switch for easy array voicing
integrated limiter and protection circuit
4x M10 fly points
integrated flyware for an easy array setup
ultra-compact and lightweight
robust wooden housing (15mm birch plywood)
supported by EAB Resolution prediction software
dimensions: 628 x 405 x 373 mm (WxDxH)
weight: 26.7 kg

Produktinformation

Produktnr.: LO-2034928-01

Allmänt

Mackie's HDA High-Definition Line Array speaker delivers a superior performance and offers unparalleled sound quality. It's powered by a 1,200 Watt class-D amplifier, and covers a range of 110 by 20 degrees.

A full HDA array system uses four HDAs and two HD1801s per side, set up for maximum coverage and optimal low-frequency directivity. The HDA speaker is stackable, but you can also mount it on a flybar, or on top of an HD1801 subwoofer if you're working without trusses.

For low frequencies, the bi-amplified HDA has an amplifier with an impressive capacity of 500 Watts RMS. The high frequencies, meanwhile, are reproduced by a 100 Watt RMS amp. The speaker uses class-D amplifiers, which are ultra-efficient and cool running, and offer all the power required to drive high-output drivers in a lightweight design.
